JIA-925information

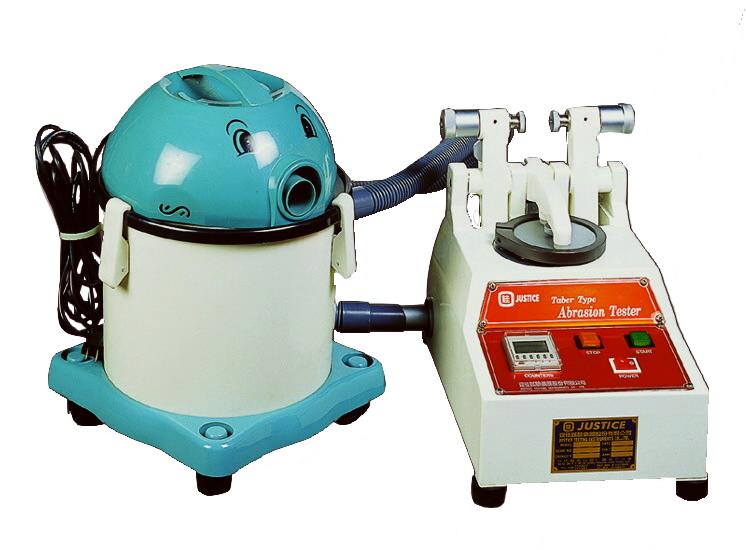

TABER TYPE ABRASION TESTER
ASTM-D1175
It "s applicable for testing the abrasion of cloth, paper, tile, plywood, leather,... ...etc.

Rotation speed: 60rpm
Load:250、500、1000g
Grinding wheel:¯2"
Counter:6 figures LCD
Equipped with:vacuum cleaner

JIA-926information

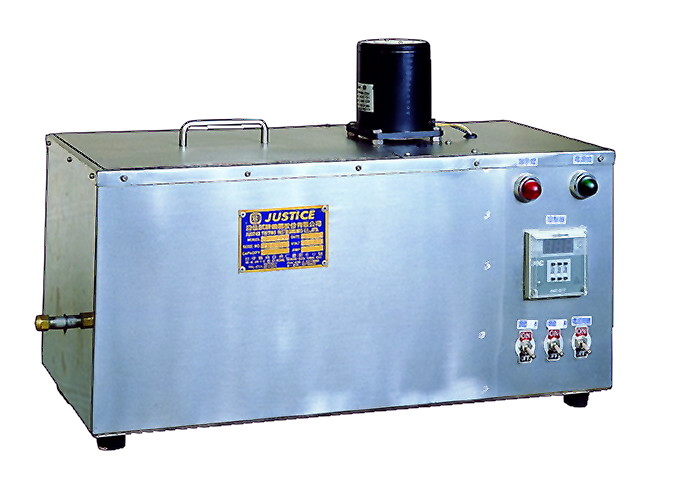

WATER BATH TESTER
ASTM-D1693
Sock specimen in warm water after the specified time to observe whether its surface has a blister, discoloration, swell......etc.

Temp.:room temp.～100℃
Interior:30X20X20㎝
Mixing motor:20W

JIA-927information

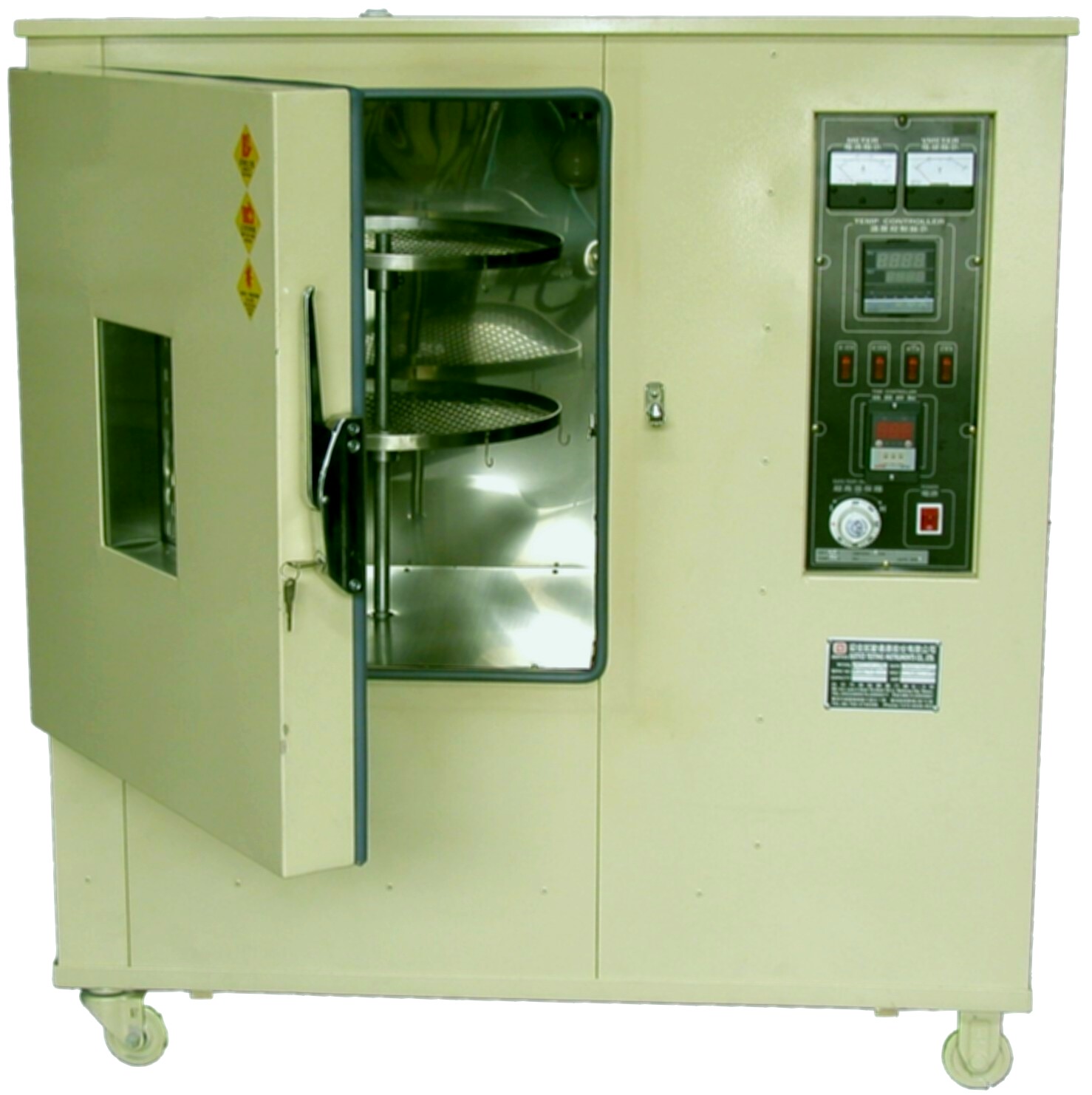

AGING OVEN TESTER
It'It is used for measuring the heat-endurance and pressure resistance of the cord, place specimen in the chamber at 100℃ under a specified load to check its depth of concavity, it will be qualified, if the depth is within 2㎜.

Temp. range:room temp.～200℃
Pressed weight:20N
Radius of ball end:R2.5㎜
Dimension:40X40X45㎝

JIA-928information

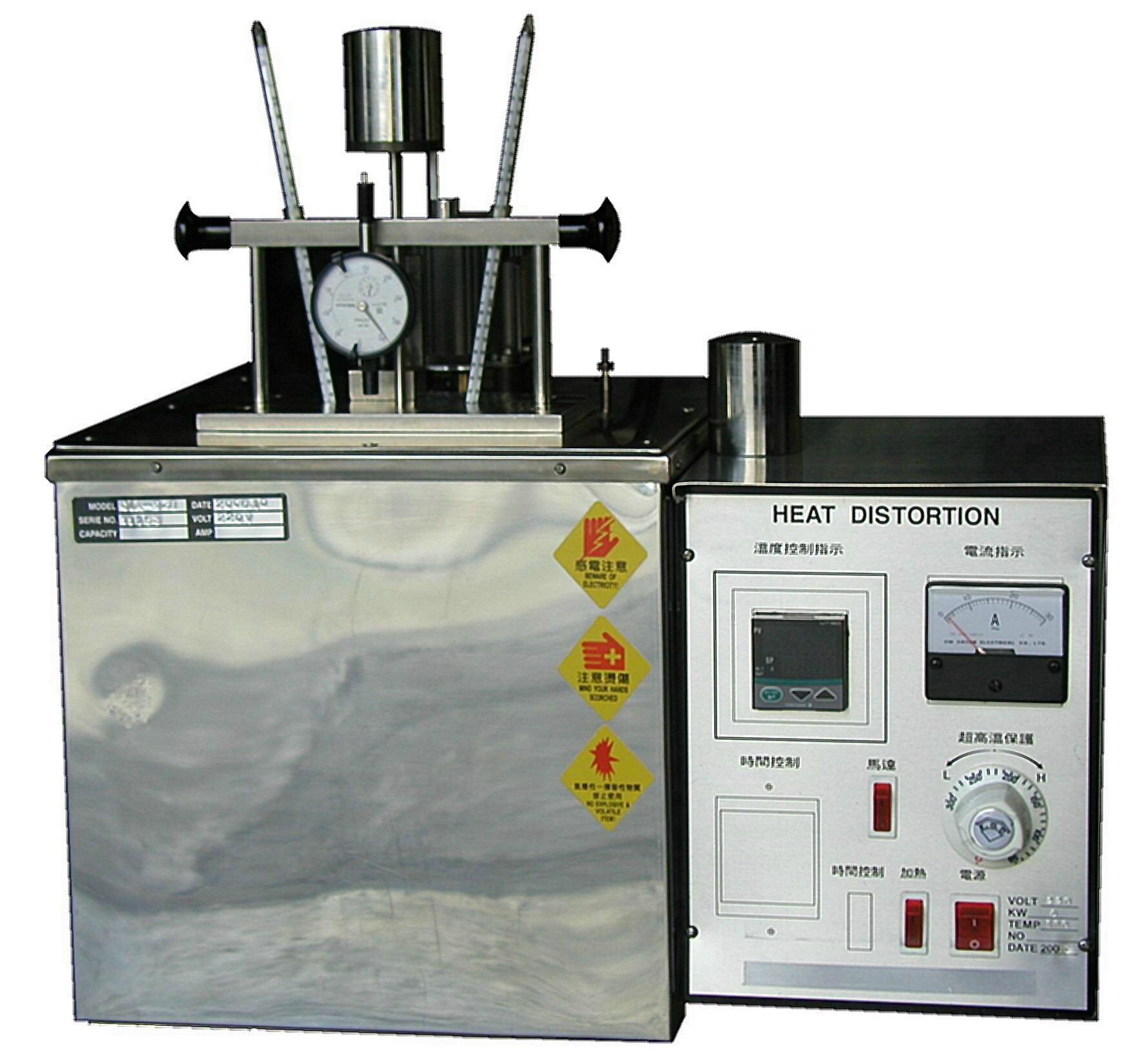

DEFLECTION TEMPERATURE BATH
ASTM-D648
The determination of the temperature of specimen, at which a specified deftection occures, immersed in oil-bath subjected to a certain bending stress.

Temp. control:progammable，room temp.～300°
Load:10、20、30、50、100、200、300、500g
Deftlection gauge:0.01～10㎜

JIA-929information

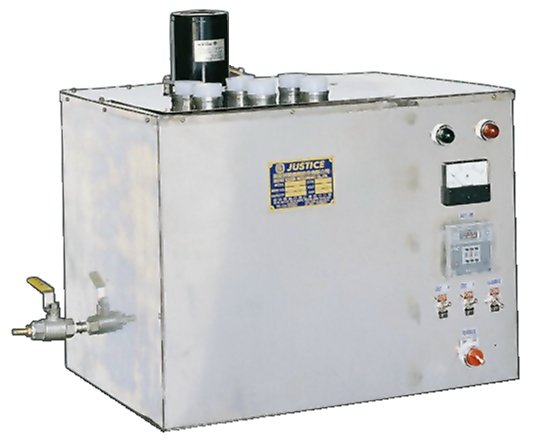

OIL BATH TESTER
GB-1690
Specially test the heat-endurance oiliness of rubber products such as oil seal, oil-protection coil.

Temp. range:room temp.～300℃
Test cup:¯38X300㎜X6 sets
Test bath:20x20x30㎝
Mixing motor40W

JIA-930information

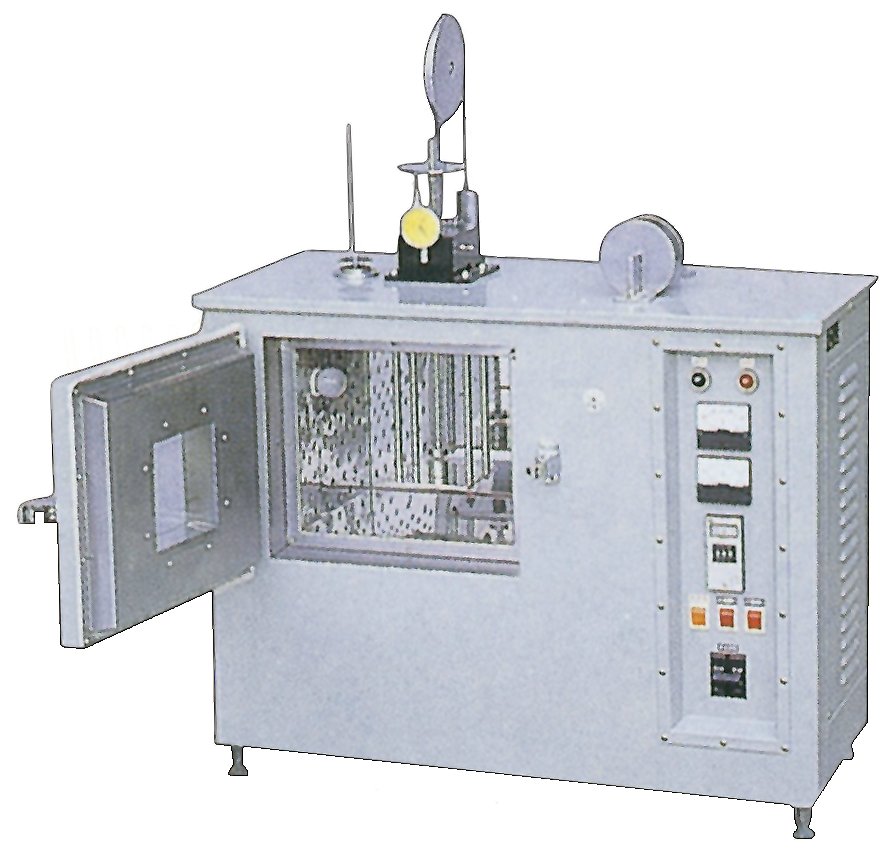

SOFTENING POINT TESTER
ASTM-K6742
Put indenter on specimen and load force on the indenter into the chamber with heating speed of1℃/min, when the indenter penertrates into the specimen for0.1m, record the required temp. to judge the quailty of heat resistance.

Specimen size:15LX10WX2mm
Indenter:¯1㎜Load:2㎏
Microgauge:0.01～10㎜
Temp.:room temp.～200℃

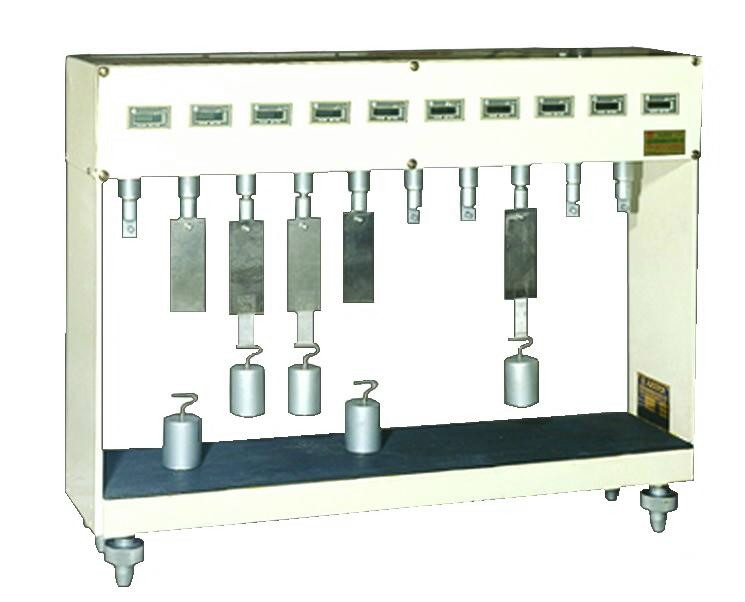

JIA-931information

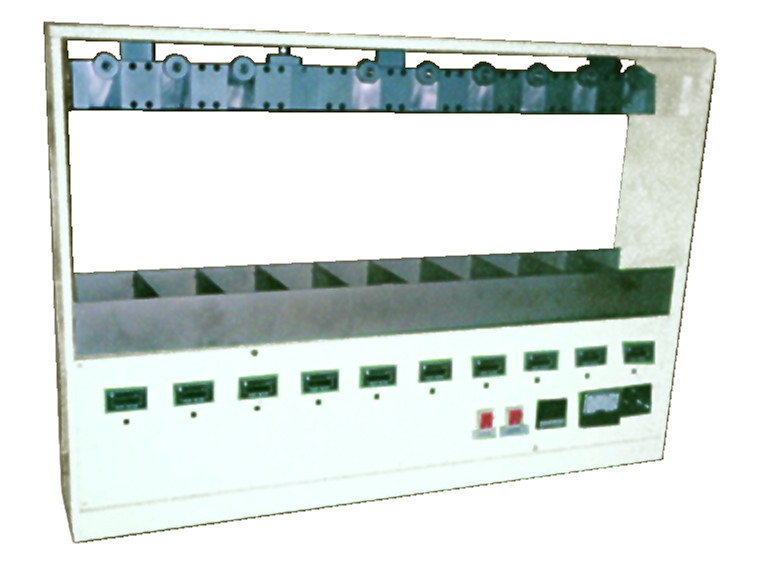

TAPE RETENTIVITY TESTER
Roll one end of tape adhering to test plate, hang a specified load on lower end and then measure distance of slide after a certain time.

Model:A 5 setsB 10 sets
Test area:25X25㎜
Load:1KgX5pcsorX10pcs
Battery timer:6 figures

JIA-931Hinformation

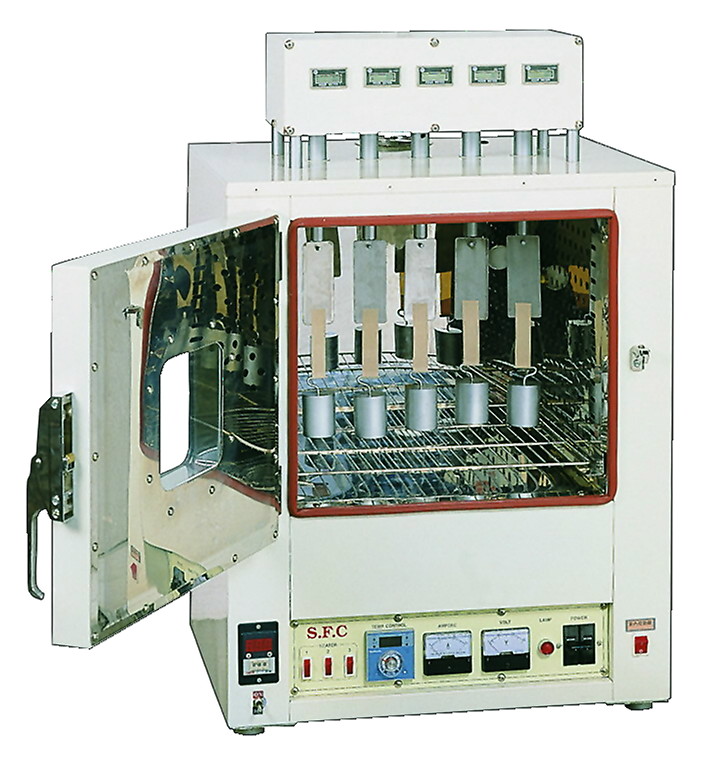

HOT PLATES TAPE RETENTIVITY TESTER
Place the tape into the hot environment to test its retentivity.

Test specimen:AH5setsor orBH10sets:
Test area:25X25㎜
Load:1kg 5pcs or10pcs
Battery timer:6 figures

JIA-931ACinformation
TEMPERATURE TAPE RETENTIVITY TESTER
Place the tape into the hot environment to test its retentivity.

Test specimen:5 sets
Test area:25X25㎜
Load:1kg 5pcsBattery
timer:6 figures

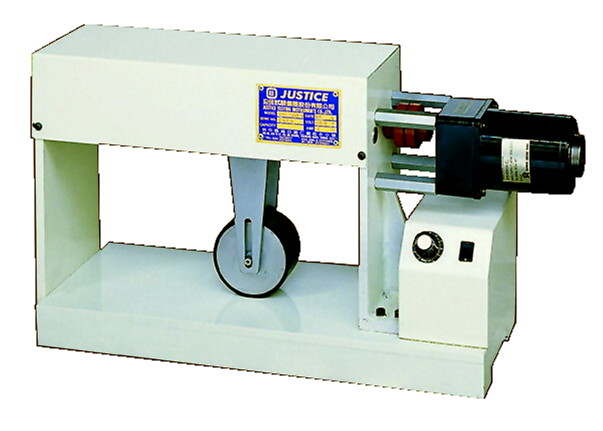

JIA-931-1information
MOTOR TAPE PRESSING ROLL
JIS-C2107
For specimen conditioning utilize theweight of roller rolling tape to sick it completely＆smoothly to the testong plate.

Dia of roller:¯83㎜
Width of roller:45㎜
Load:2000±5g
Test speed:0～300㎜/min(adjustable)
