JIA-516Binformation

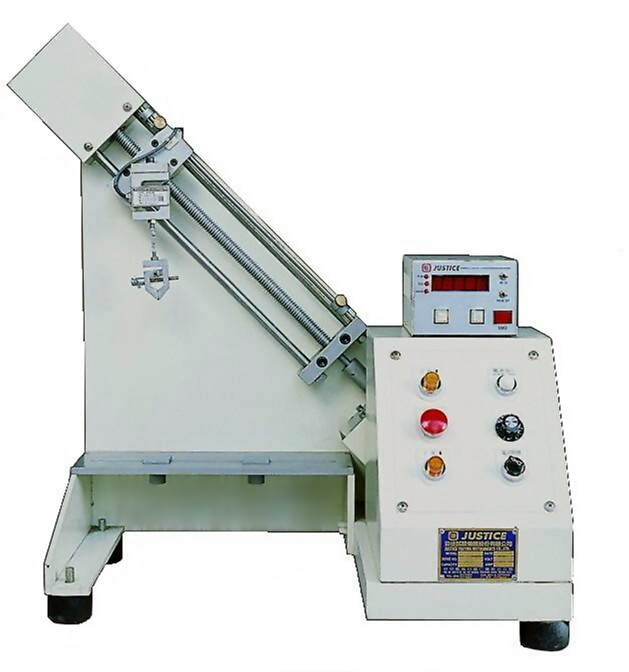

ADHESION-TEARING STRENGTH TESTER
This machine can test the adhesive firce of copperfoil circuit on the pc board and the density of object surface which tinfoil leadfoil, tape......etc.are adhered.

Capacity:2～50㎏（B Force gauge）(A LED display）
Resolution:1/200（LED display 1/10000）
Test speed:10～100㎜ (afjustable)
Peeling angle:90°

JIA-611Ainformation

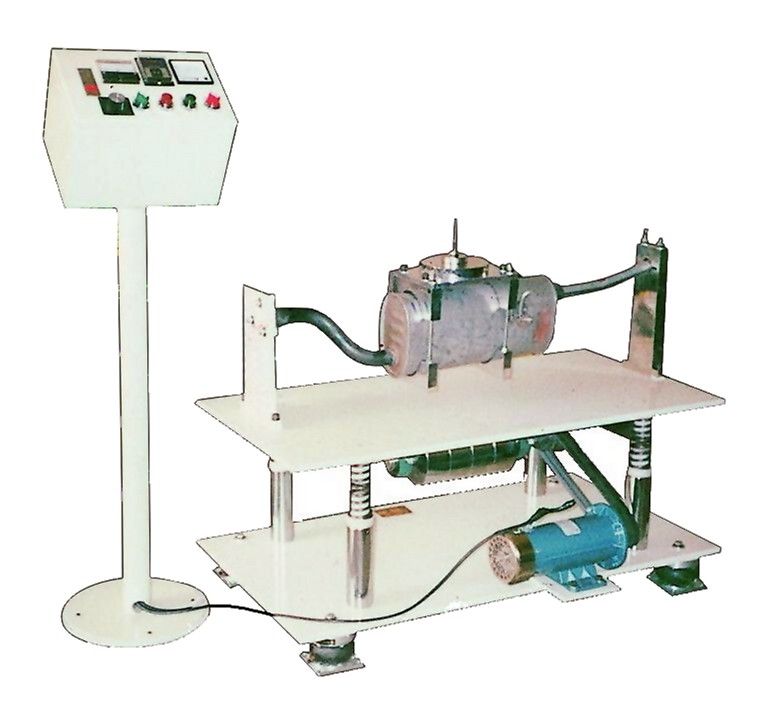

VIBRATION TESTER
This machine is specially designed to test the vibration-resistance of finished products or components of electron, electric appliance......etc.

Virbrating direction:up/down, left/right
Virbrating speed: 10～60HZ
Amplitude:0～4㎜( adjustable)
Counter:999 min, 2set
Direction:up/down then left/right)

JIA-611Binformation

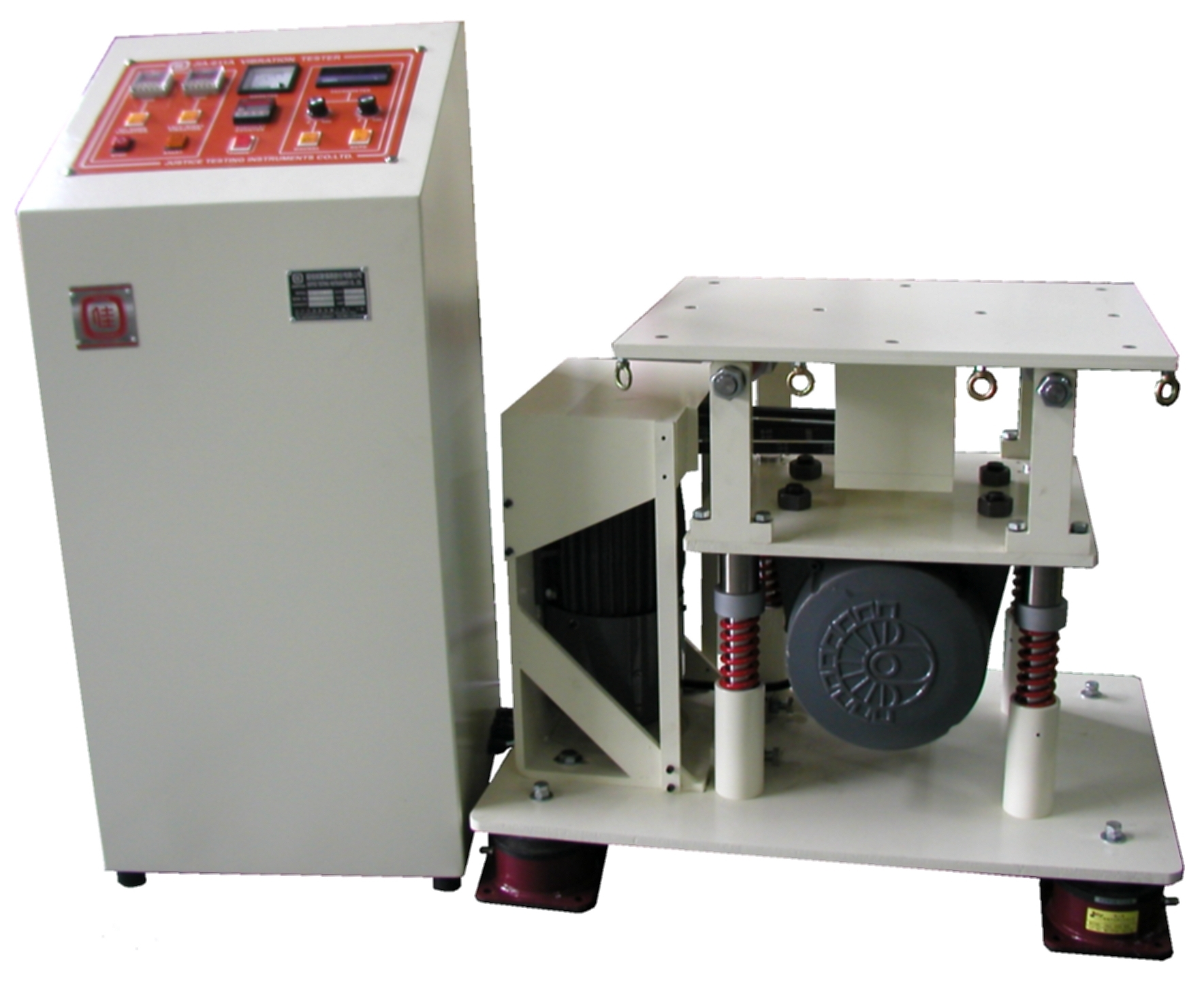

VIBRATION TESTER
This machine is specially designed to test the vibration-resistance of finished products or components of electron, electric appliance......etc.

Virbrating direction:up/down or left/right （optional）
Virbrating speed: 10～60HZ
Amplitude:0～4㎜( adjustable)
Counter:999 min, 1set

JIA-611Cinformation

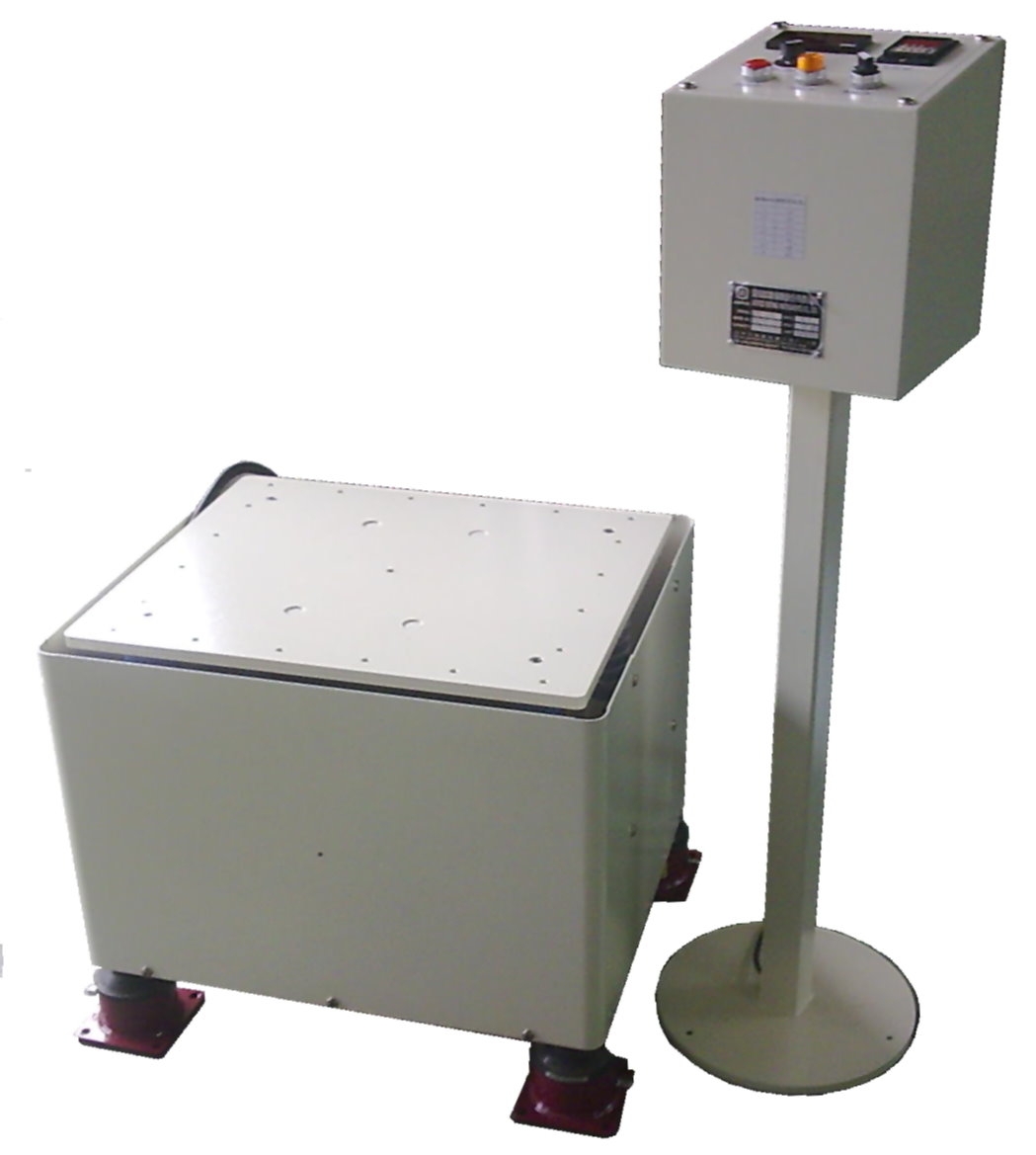

VIBRATION TESTER
This machine is specially designed to test the vibration-resistance of finished products or components of electron, electric appliance......etc.

Virbrating direction:up/down or left/right
Virbrating speed: 23HZ（1400cpm）
Amplitude:0～4㎜( adjustable)
Counter:999 min, 1set

JIA-612information
BRITTLENESS TEMPERATURE TESTER
The test specimens are mounted to a Cantilever grips and immearsed in a Low temp. then strike specimen with the tipe of hammers to detect whether it has fracture or not.

Temp. range:0～-80℃
Impacter 's radius:1.57㎜
Specimen:Plastic 38X6X2㎜ Rubber 32X6X2㎜

JIA-613information
DIELECTRIC WITHSTANDING TESTER
This tester is to test the damaged extent of conductor or various materials of insulator caused by the voltage endurance.

Capacity:10KVA、5KVA、0.5KVA (optional)
Output voltage:(10KVA)AC 10KV,20KV， (5KVA)AC 7.5KV,15KV (0.5KVA)AC 0.5KV,10KV (optional

JIA-614information

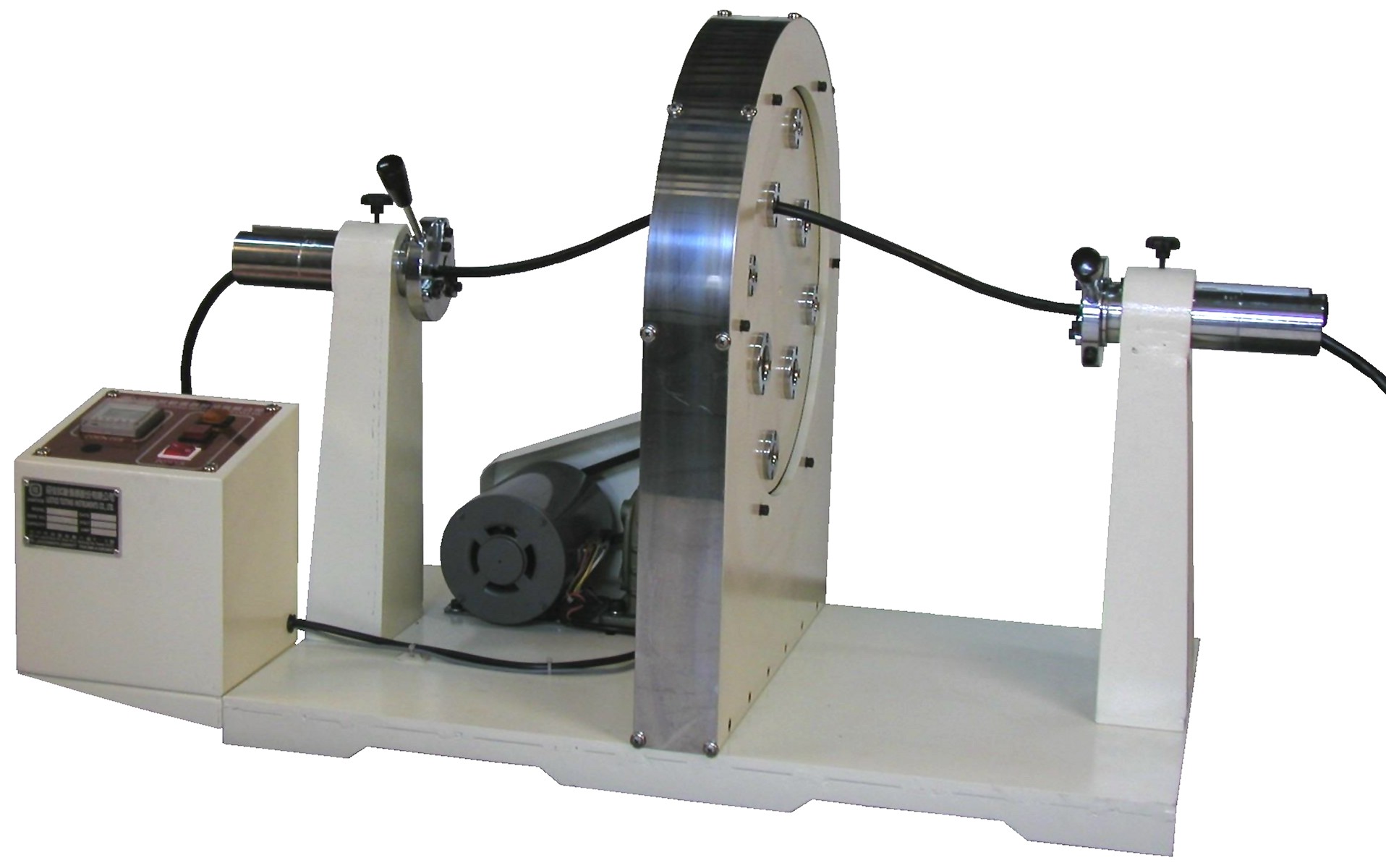

CORD FLEXIBILITY TESTER
This machine is to test the degree of the damage, and cracking after cables and wires are testing to decide their quality.

Rotating speed:20rpm
Power:1/3HP

JIA-615information

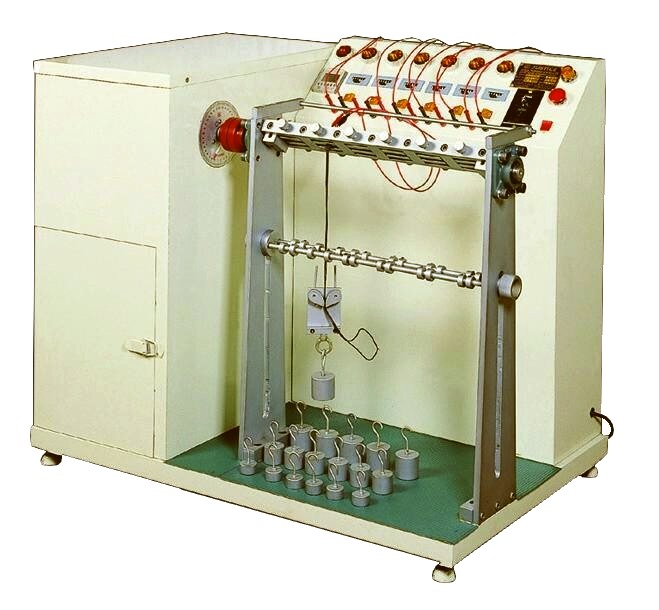

PLUG BENDING TESTER
Specially test the life of extended wire of plug, when specimen is bended and circuit breaking happened, electric current cource can't supply, the operation will auto-matically cease.

Specimen:6 set
Flexing angle:30、45、60、90° (adjustable)
Flexing speed:10～60cpm (adjustable)
Load:100、200、300、500g, each 6sets
Count:7 sets (separatory 6 sets)

JIA-616information
DIELECTRIC & INSULATION TESTER
It performs the test of withstanding voltage of various electric materials or measures its insulator's resistance.

Capacity:AC2.5/5KV
Applied voltage:DC500V
Impedance:0～500MΩ
Cutoff current:0.5、1、3、5、10mA( 5 steps)
Counter:0～60sec

JIA-617information
PARALLEL PLATE PLASTOMETER
It's used to test the deformation rate of specimen under a specified load and temperature.

Model:A 1 set、B 3
setsLoad:50，100，250，500，1000g
Temp.:natural～200℃
Microgauge:0.01～30㎜
