JIA-CS-22Cinformation
UNIVERSAL WEAR TESTER
It "s a multifunction and precisioninstrument to measure the abrasion resistance for the surface, bend and edge of paper, plastic, rubber ......etc.

Tension weight:2～1/2LB,2～1LB,1～2LB
Head weight:2～1/2LB,2～1LB
Table stroke: approx.1"
Reciprocal speed:120cpm
Compression:1～9PSI

JIA-718information
PERSPIRATION TESTER JIS-L-0822
Completely and averagely sock specimen into acid and alkaline artificial sweat liqurd for 30 minutess, press it by this tester at the specified time and temp. to evaluate the grade of perspiration-endurance against comparision of grey scale mark.

Specimen:A6X6㎝、B10X4㎝、AATCC5.7X5.7㎝
Load:CNS4.5㎏
Acrylic plate:115LX63WX3T㎜

JIA-718Ainformation
PERSPIRATION TESTER
Completely and averagely sock specimen into acid and alkaline artificial sweat liqurd for 30 minutess, press it by this tester at the specified time and temp. to evaluate the grade of perspiration-endurance against comparision of grey scale mark.

　

Specimen:A6X6㎝、B10X4㎝、AATCC5.7X5.7㎝
Load:CNS4.5㎏
Acrylic plate:115LX63WX3T㎜

JIA-719Ainformation

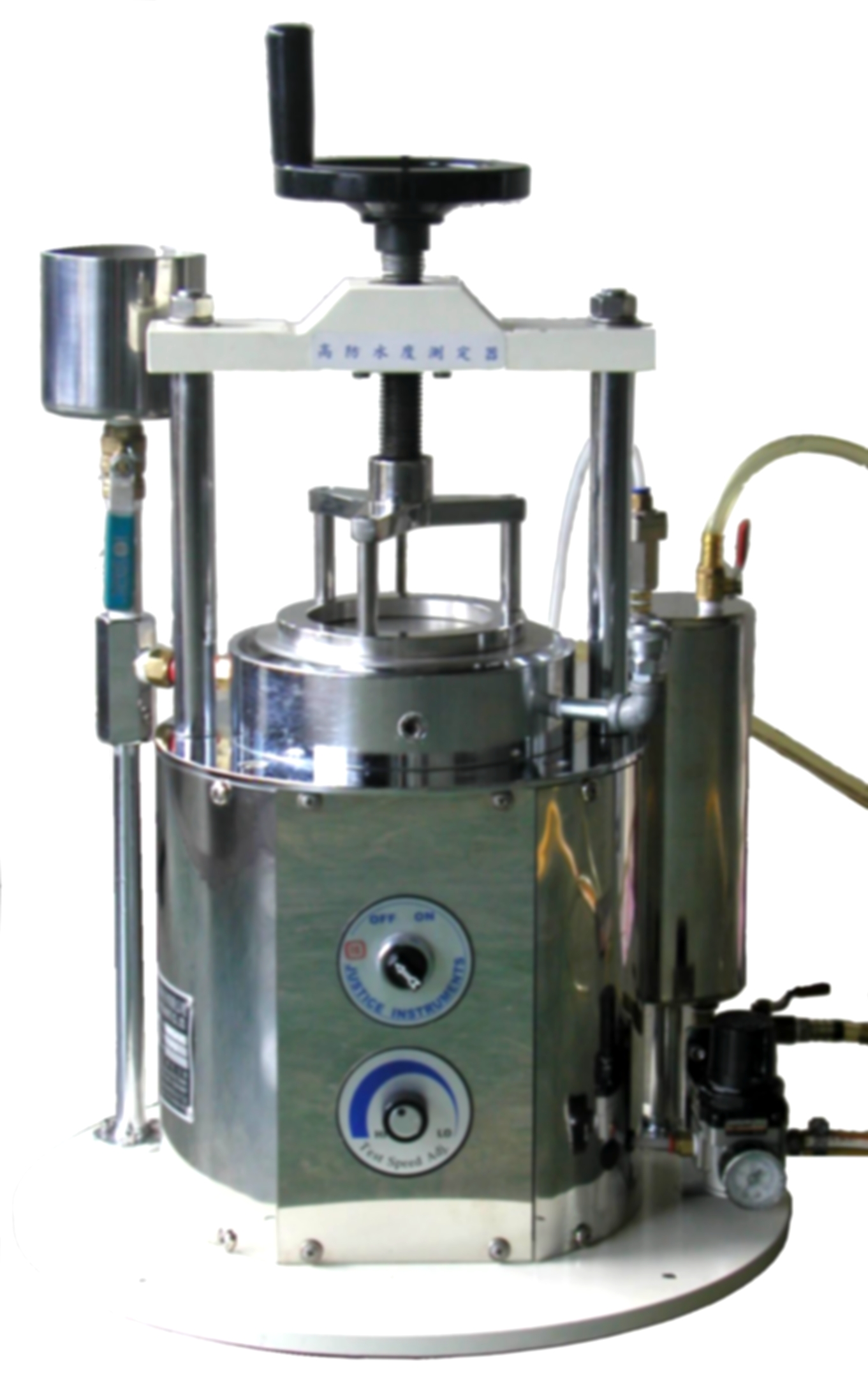

HYDROSTATIC HEAD TESTER
It's used for determination of the resistance of waterproof cloth, fabric, synthetic, leather and leather to water penetration.

Pressure:0～4㎏/㎝2（40000㎜ Aq）
Test area:100㎝2
Speed:adjustable
Equipped with:air compressors

JIA-720information    Animation
DYENG RUBBING TESTER
Coat surface of abrasive hammer of the tester with dry wet white cotton cloth then abrade colored specimen with the certain load and fixed times to evalute it's grade of colordyeing abrasive firmness.

Rubbing speed:30cpm
load:200，500g
Rubbing space:100㎜
Counting method:

JIA-905information

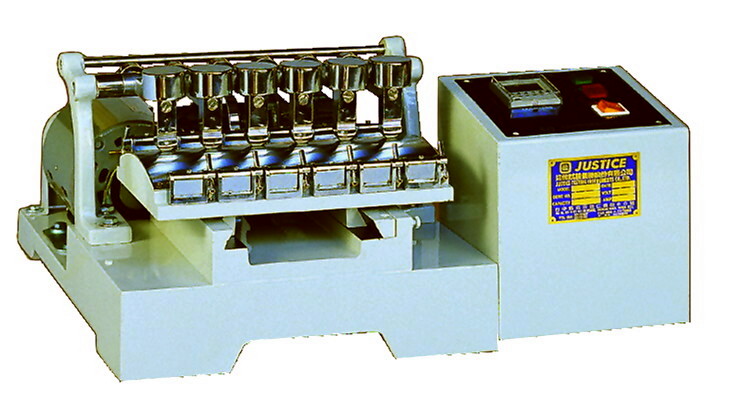

BALLY LEATHERS FLEXING TESTER
This device is suitable to test thin leather products for vamp, dress cloth and bags.

Specimen:70X45㎜ 6set or12set (adjustable)
Flexing angle:22.5°Flexing
speed:100cpm
Counter:6 figures LCD

JIA-906Ainformation
MAESER WATER PENETRATION TESTER
ASTM-D2099
Test shoe upper material of leather synthetic leather, cloth ......etc. against water penetration, which is taken the specimen immersing in water and flexing by a constant speed.

Load:steels balls ¯1/8"，weight135±5g
Stroke:1"（About 29°）
Test speed: 90cpm
Counter:6 figures LCD

JIA-906Dinformation
BALLY PENETRATION TESTER
DIN-53338
Test shoe upper material of leather, synthetic leather, cloth.....etc. against water penetration, which is taken the specimen immersing in water and flexing by a constant speed.

Load:steels balls ¯1/8"，weight135±5g
Stroke:2，3，4，6㎜ (settable)
Test speed: 90cpm: 60cpm
Counter:6 figures LCD

JIA-907information

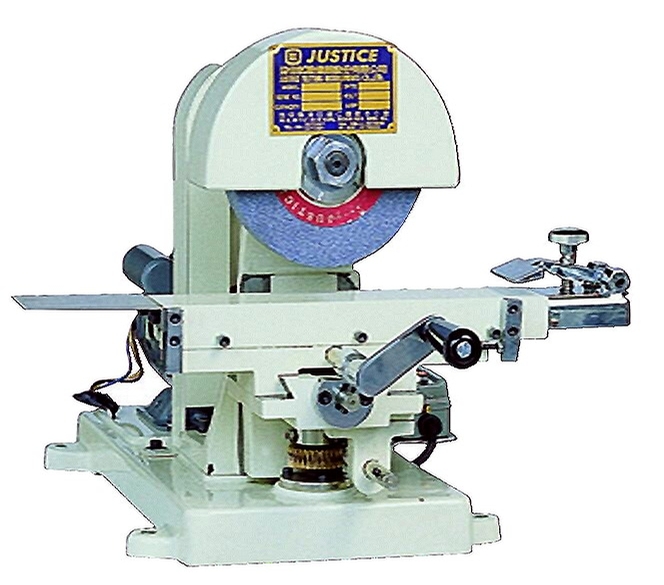

SAMPLE BUFFING MACHINE
K6301
TThis machine will be able to grind the surface of the material and take the necessary thickness of materials for testing.

Griding wheel:30#，¯6"
Speed:50HZ～1420rpm 60HZ～1720rpm

JIA-908information

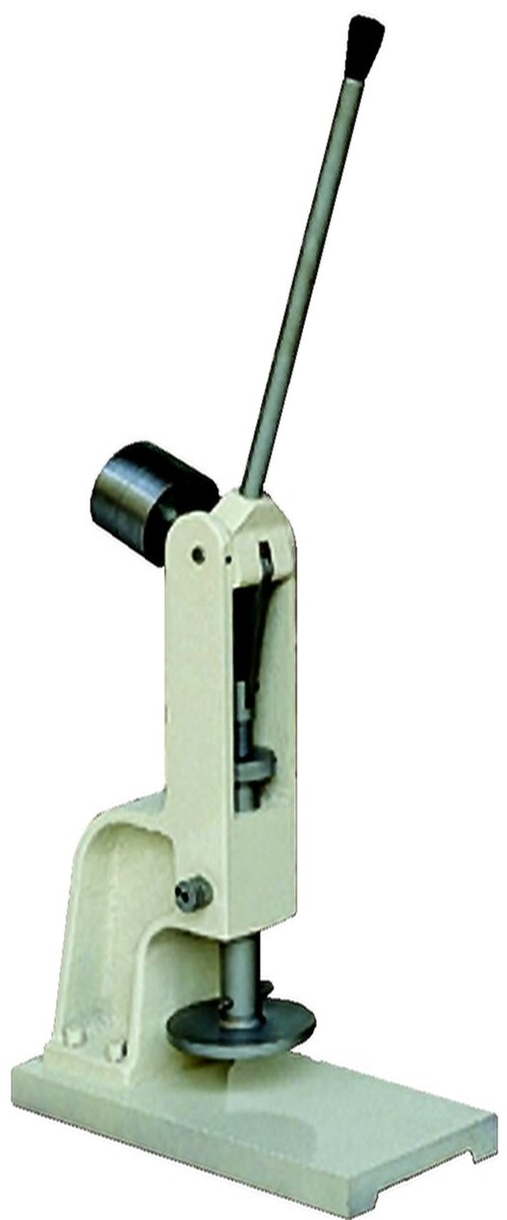

CUTTER PRESS ASTM-K6301
ASTM-K6301
For taking specimen of rubber.

Cut method:Downward type
