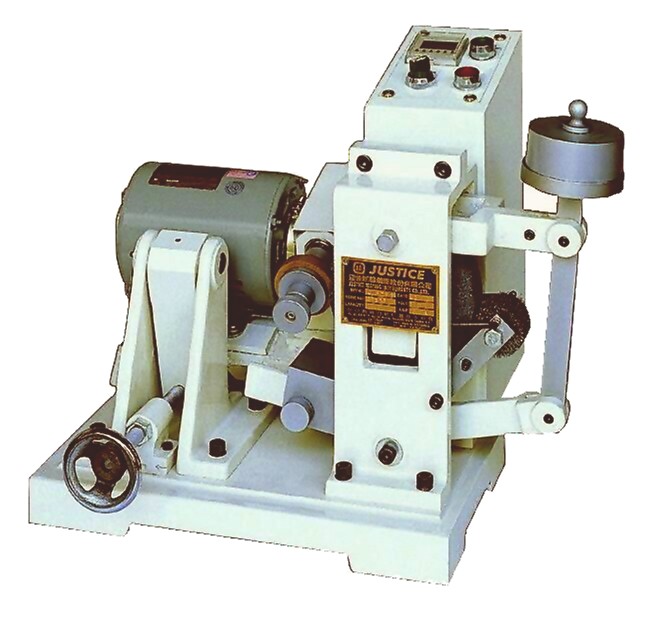

JIA-919information
AKRON ABEASION TESTER
BS-903
It "s applicable for testing the abrasive consumption of rubber products as sole, tire......etc.

Grinding wheel: grain size40#
Specimen slanted range: 0～45°
Specimen rotating speed:85±5rpm
Load:2、6LB

JIA-919D DINinformation

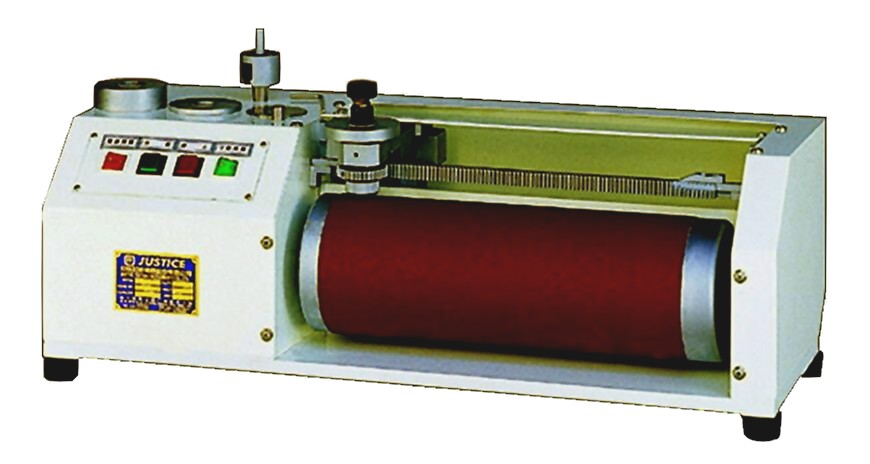

DIN TYPE ABRASION TESTER
DIN-53156
This tester is used to evalute the resistance of rubbers or other elastomers during frictionand wearing.

Load:2.5～12.5N,5～15N,7.5～17.5N 10～20N
Drum dia:150㎜
Drum rotation:40rpmGrip
displacement:4.2㎜/per drum revolution

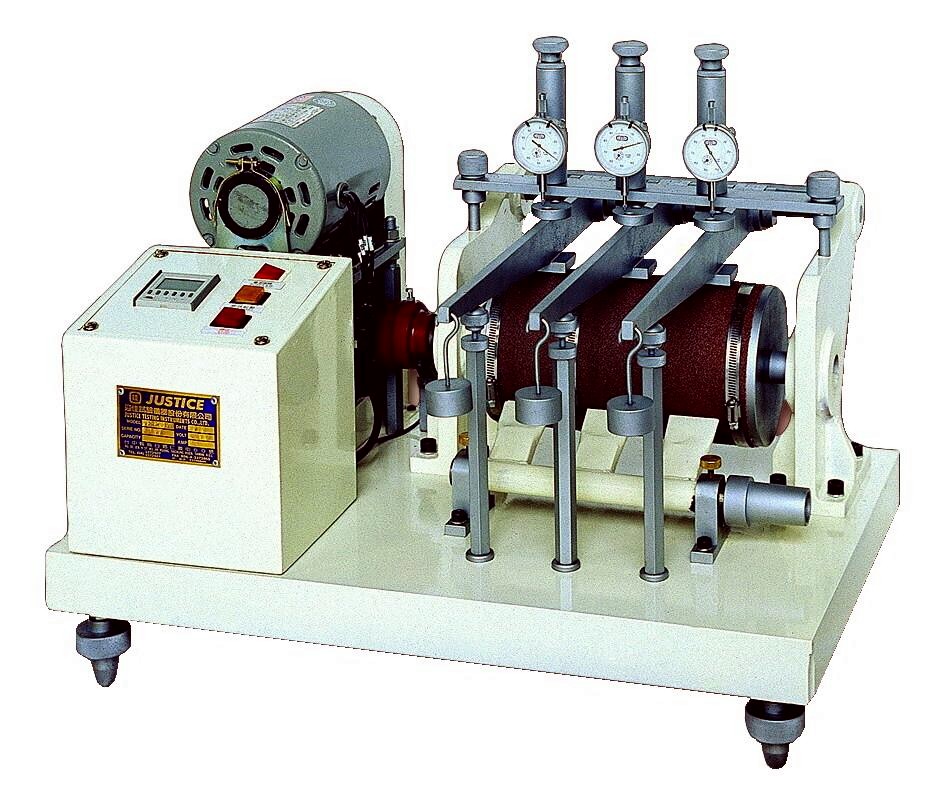

JIA-919Ninformation
NBS RUBBER ABRASION TESTER
ASTM-D1630
Load the specimen to abroad it with the griding paper on a rotating roller to check its consumption.

Rotation speed:45±5rpm
Load:2265g 3pcs
Drum Dia: ¯150mm
Counter: 6 figures LCD

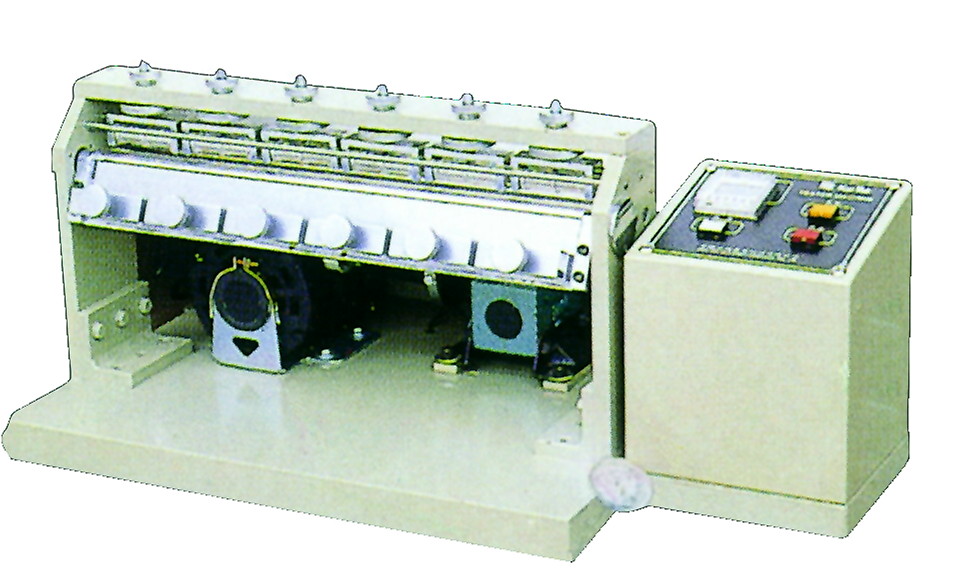

JIA-920information
ROSS FLEXING TESTER
ASTM-D1052
Specially test the flexibity endurance of rubber, sole, PU......etc.

Grips:6set (12 pcs of specimens)
Flexing angle:MAX90°
Test speed:100±5rpm
Counter: 6 figures LCD

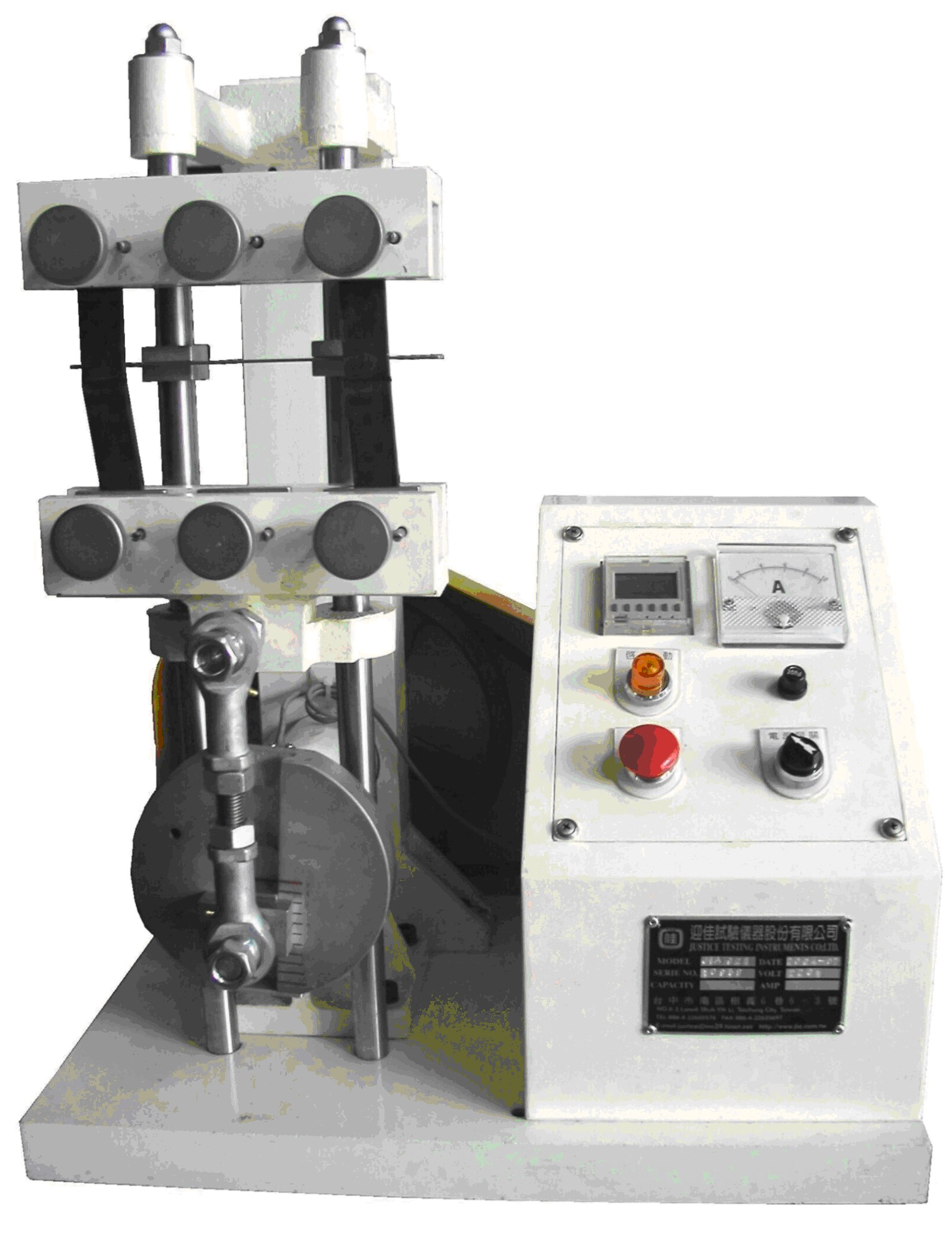

JIA-921information
DEMATTIA FLEX CRACKING TESTER
ASTM-D813
It observes the cracking endurance of spacimens i.e. rubber, leather, EVA, sole......etc. until flexibity fatigued.

Specimen:140～155LX20～25wX6T㎜
Grip space:19～75or65～90㎜
Test speed:300±10cpm
Conuter:6 figures LCD

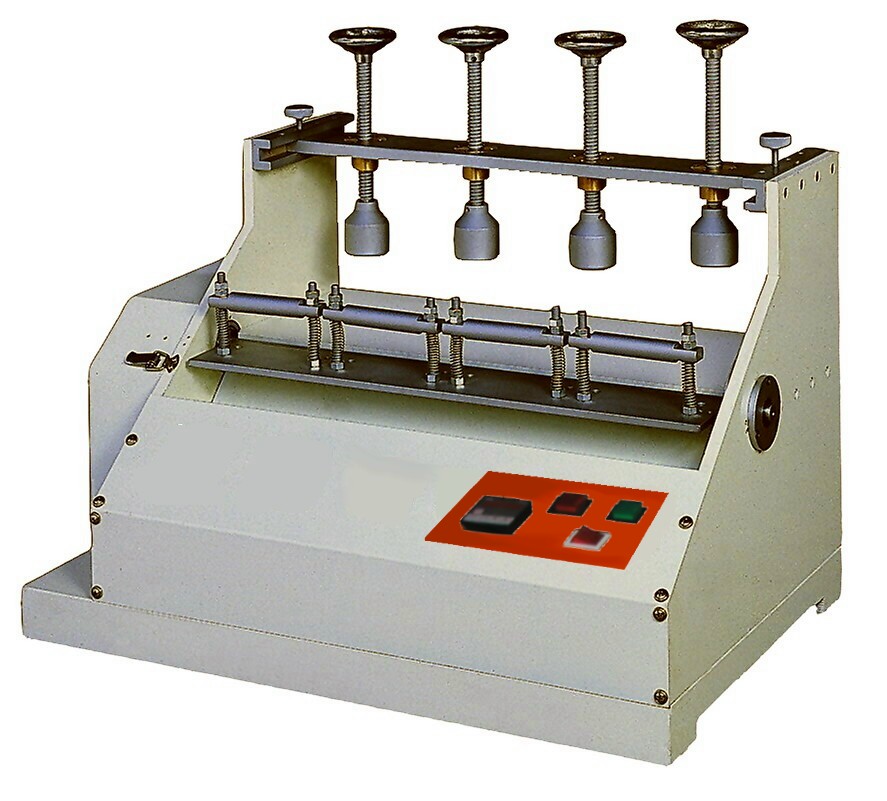

JIA-922information
SHOES FLEXING TESTER
SHOES FLEXING TESTER
The tester is used for testing the bending durability of shoes to improve its quality.

Test speed: 100cpm
Flexing angle: 0～90° (adjustable)
Counter:6 figures LCD

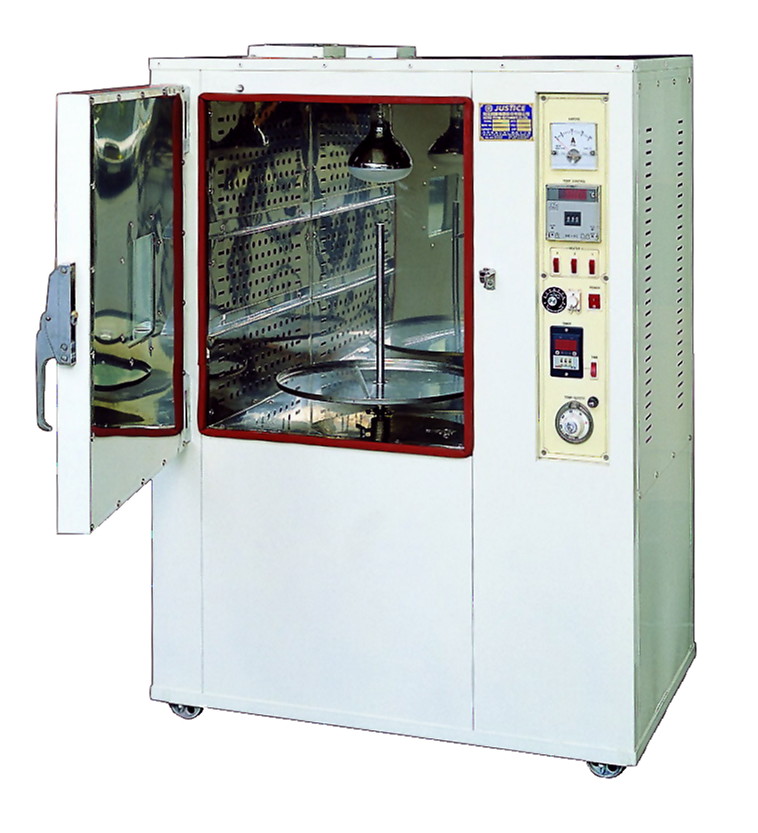

JIA-923Ainformation
UV TEST CHAMBER
Simulate the circumstances of sunshine radiation in chamber to test the resistance to discoloration of shoe materials.

Light source:sunlamp
Specimen pan:¯45㎝(revolving type)
Rotation speed: 0～40rpm(adjustable)
Test space:150～250㎜(adjustable)
Light irradiance: adjustable
Timer:0～999hr
Max Temp.:200℃

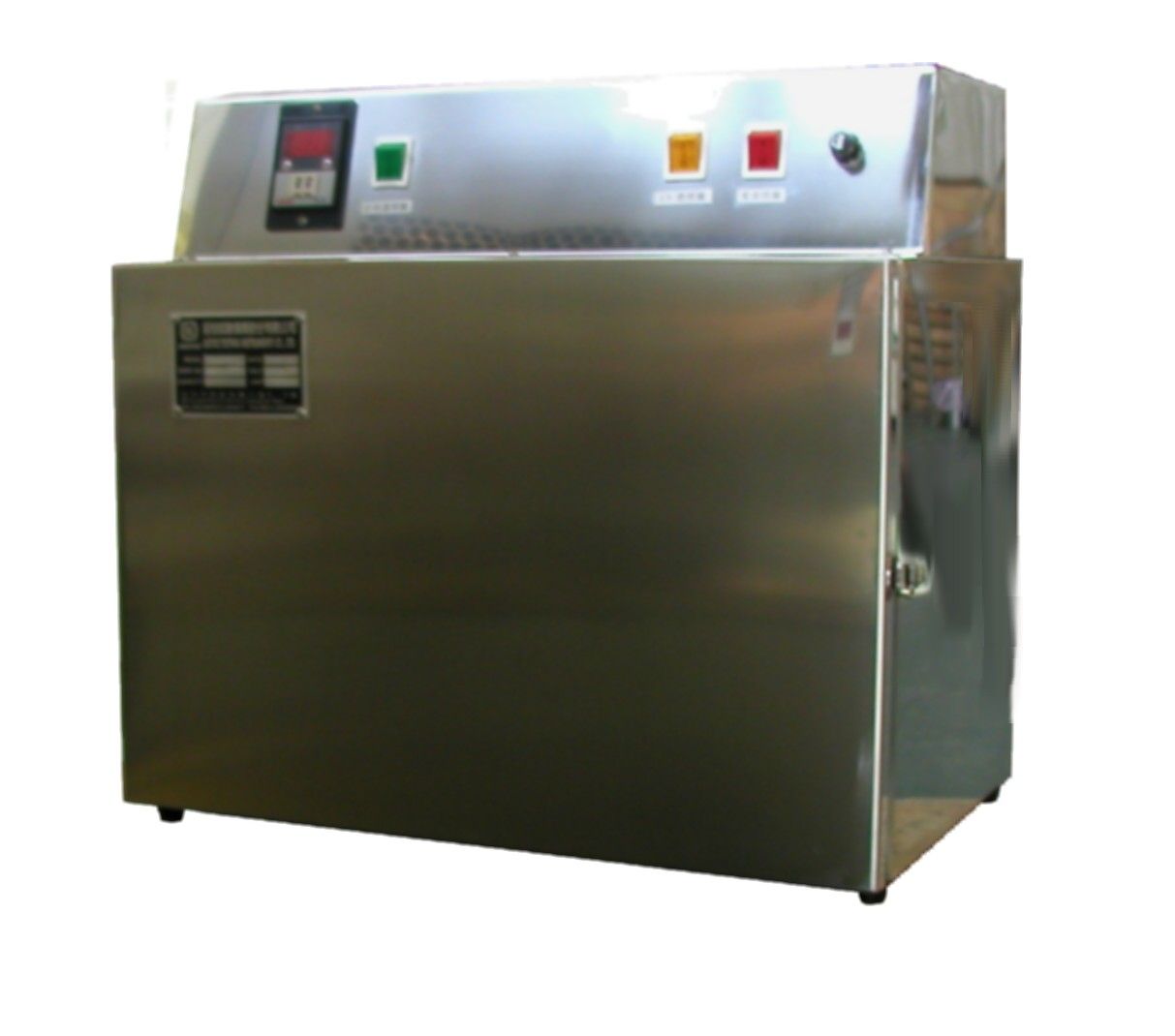

JIA-923Binformation
AUV TEST CHAMBER
ASTM-D1148
Simulate the circumstances of sunshineradiation in chamberto test the resistance to discolorationof shoe materials.

Light source:lamp tube
Specimen pan:repose
Test space:150，250㎜ (fixed)
Timer: 24hr

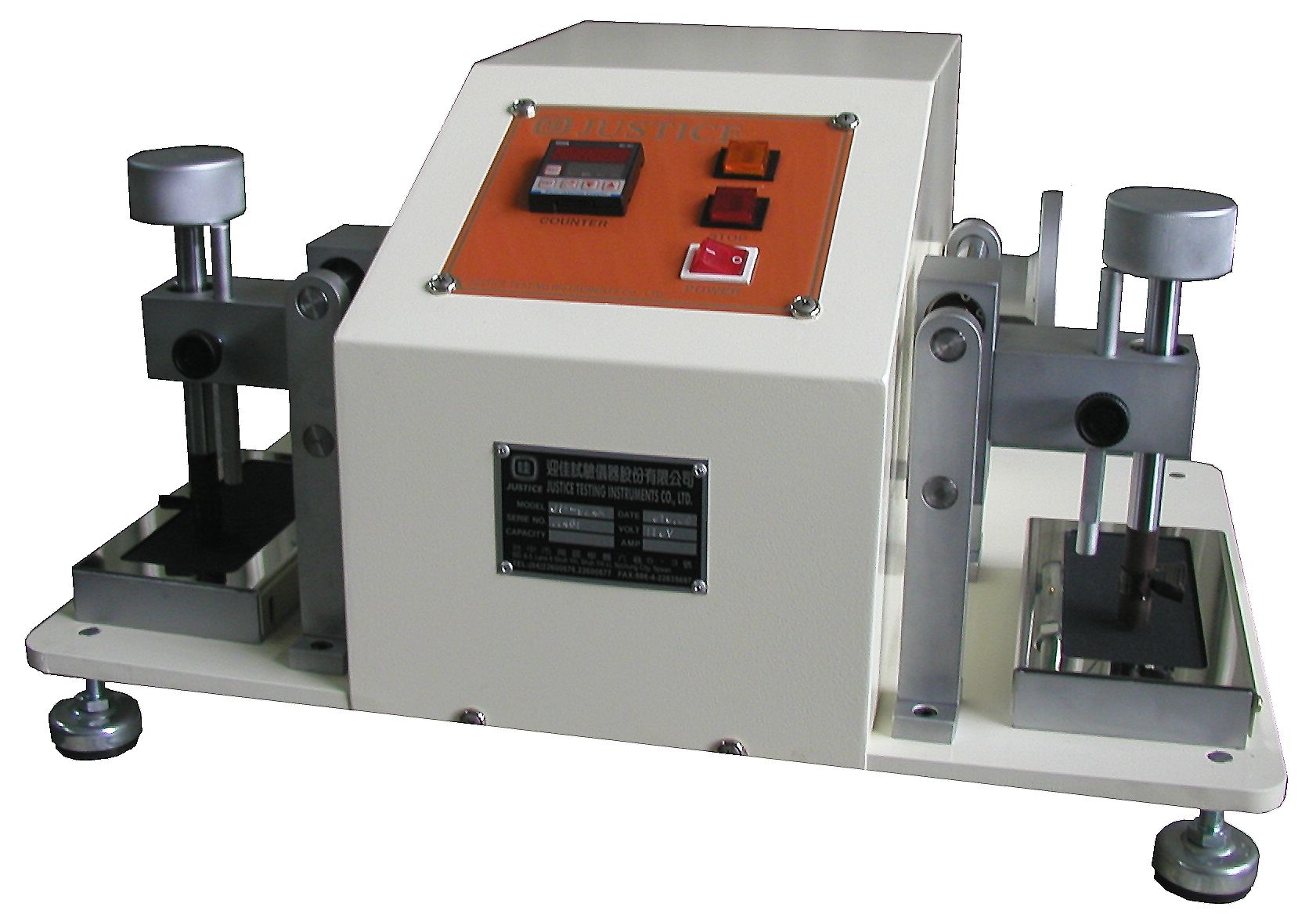

JIA-924Ainformation
CROCK METER （MOTOR TYPE）
To test dyed textile, decolored extent of leather after abrasion. First, coated abrasive hammer with dry or wet white cotton cloth, then abrade repeatedly to specimen clamped on testing table for ten times within 10 seconds thus can appraise grade of color-dying firmness.

JIA-924Binformation
CROCK METER （MANUAL TYPE）
To test dyed textile, decolored extent of leather after abrasion. First, coated abrasive hammer with dry or wet white cotton cloth, then abrade repeatedly to specimen clamped on testing table for ten times within 10 seconds thus can appraise grade of color-dying firmness.

Load:900g
Rubbing speed:Manual type
Rubbing space:100㎜
Rubbing hammer
diameter:¯16㎜Battery
timer:8 figures
