JIA-908Cinformation

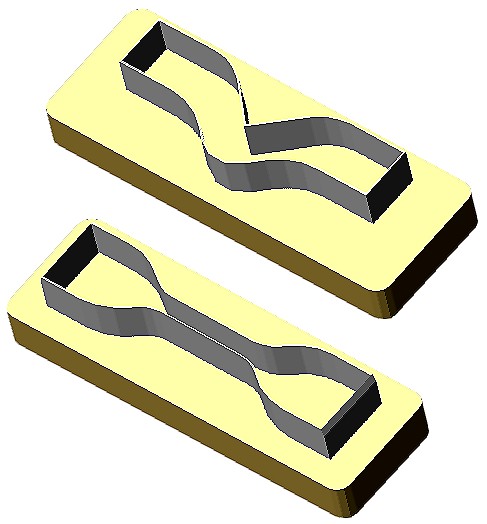

LASER CUTTER
The cutter is produced by laser high-technology with precise accuracy.

Cut accuracy:±0.1mm
Thickness of blade:0.7mm
Applicable material:rubber, plastic, leather, paper......etc.

JIA-908Hinformation

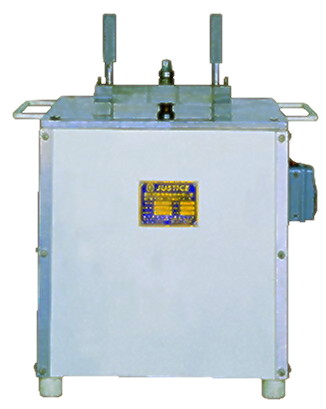

HARDNESS PLASTIC SPECIMEN CUTTING MACHINE
It's used to finish the hard plastic materials into the standard dumbbell specimens for tensile and elongation tests.

Rotation speed:1800rpm
Specimen mold:1 set

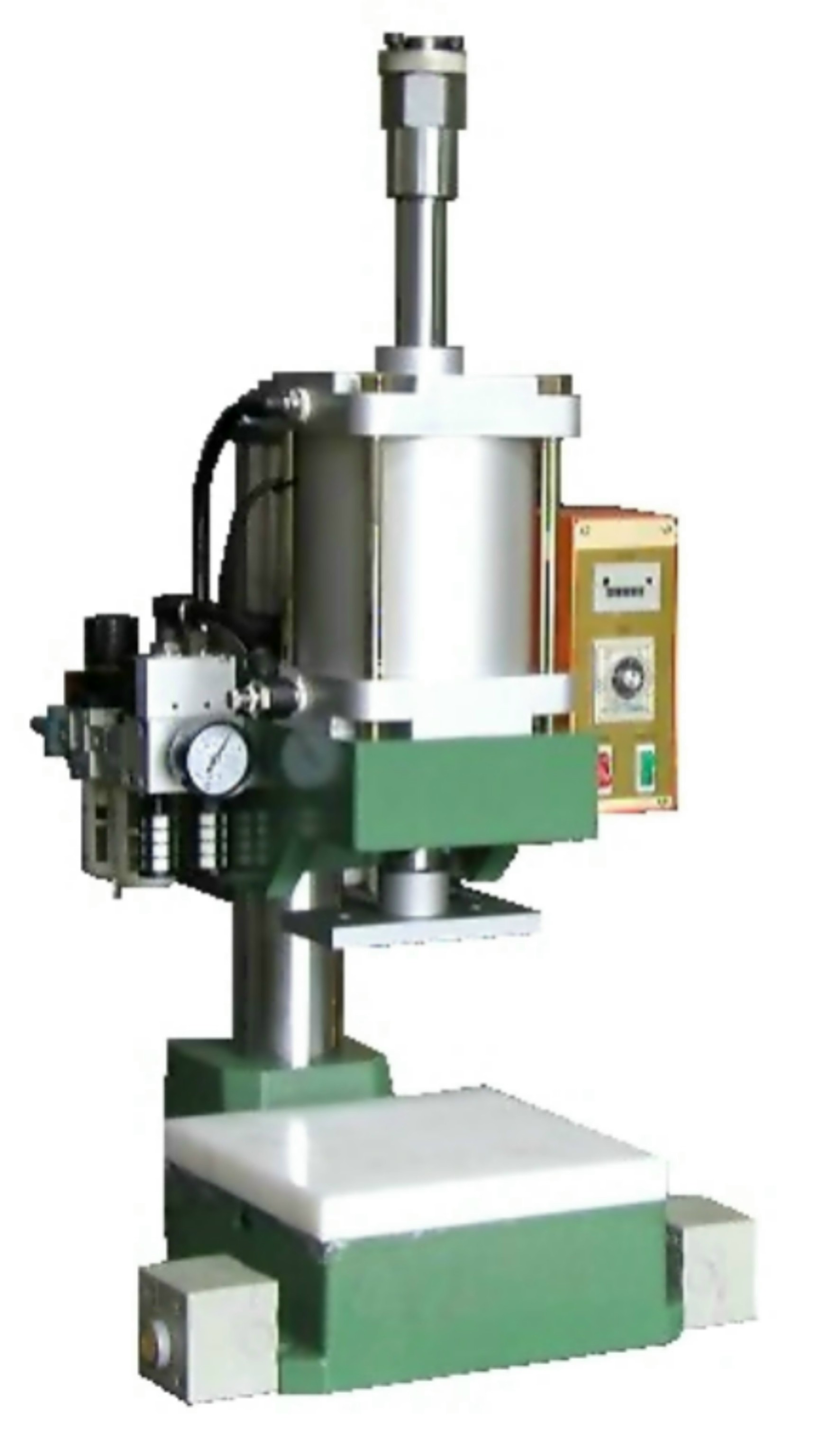

JIA-APS1000information
AUTO-PNEUMATIC CUTTER PRESS
It's actuated by pneumatic source to take the various specimen for testing.

Capacity:1000Kgf
Required air:6Kg/cm2
Work desk of Max high:320mm
Test area:250X250mm

JIA-909information

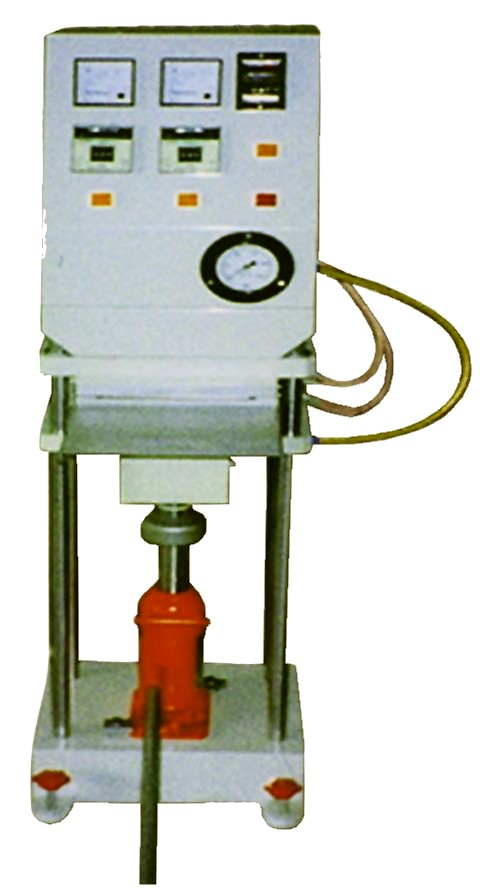

MANUAL MOLDING TEST PRESS
GB-6038
It's operated by manual and for preparing test specimen from raw material.

Pressure source: jack
Capacity:10，30，50ton (optinal)
Temp.:room temp.～300℃
Electronic timer:999hr-min-sec

JIA-909Ainformation

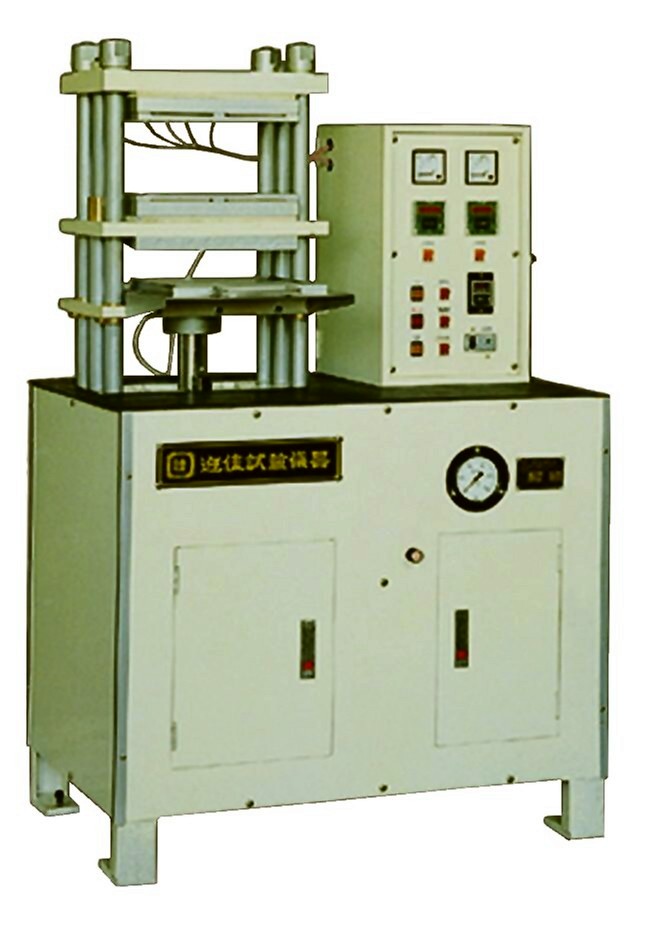

HYDRAUIC MOLDING TEST PRESS
This machine is actuated by motonized hydraulic system and for preparing test specimen from raw materials.

Pressure source:oil pressure system
Capacity:10，30，50ton (optinal)
Temp.:room temp.～300℃
Electronic timer:999hr-min-sec

JIA-910information

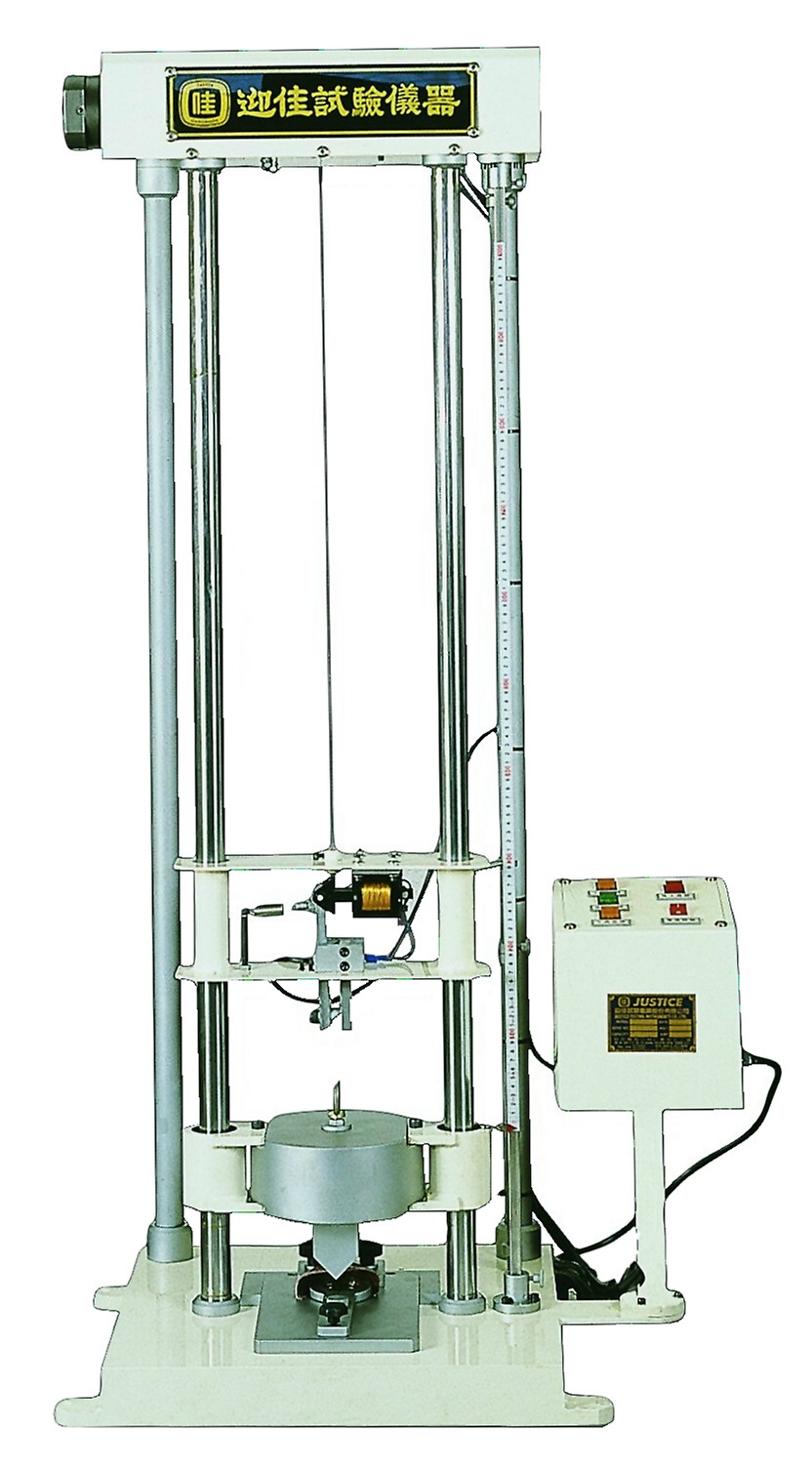

SAFETY SHOES IMPACT TESTER
CNS-6863
Put the safety shoe under the impact site, check the damage and or warp of it after hit by hammer from specified height.

Hammer weight:20㎏
Angle of hammer knife edge:90°R3㎜
Drop height:120、300、450㎜

JIA-911Ainformation

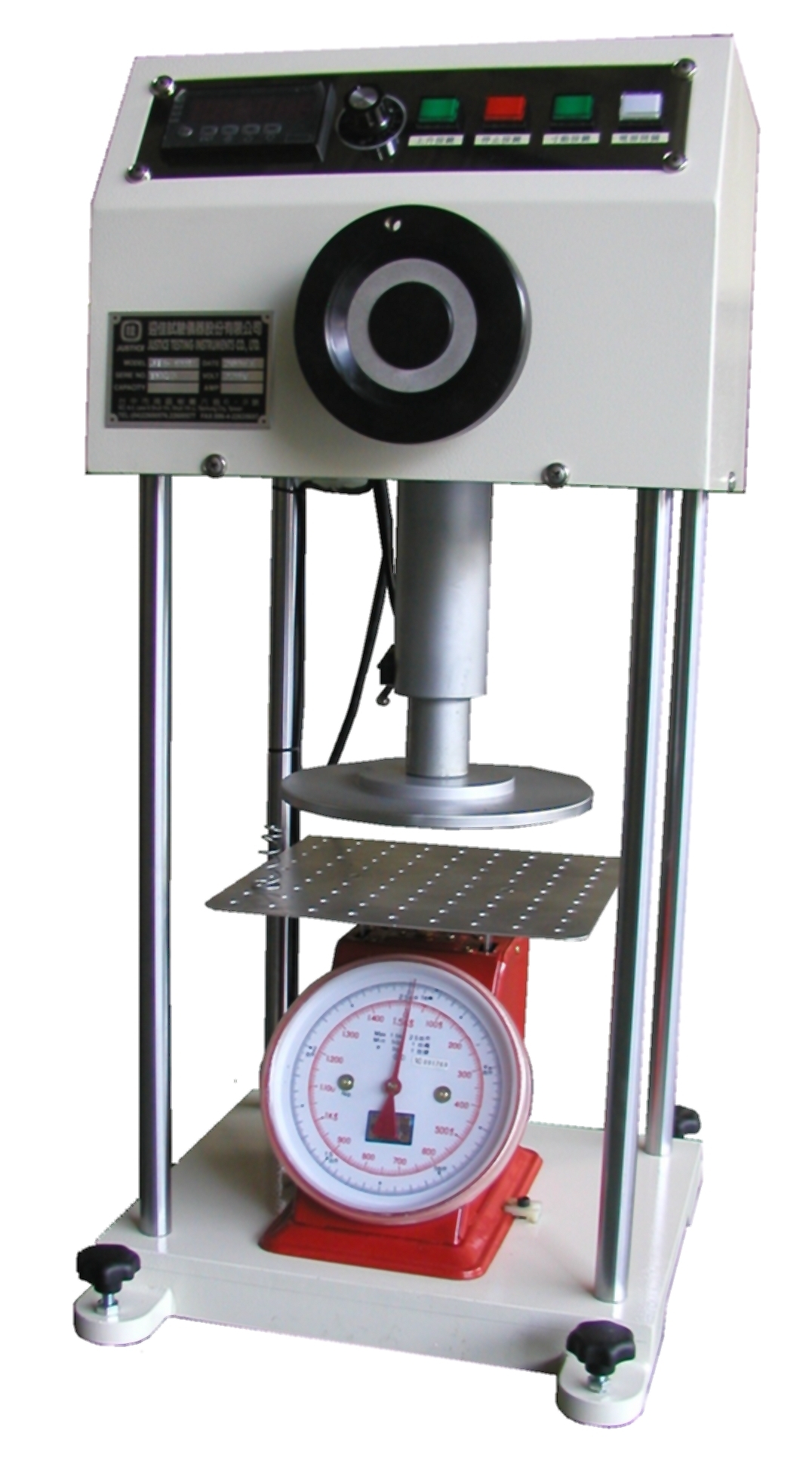

FOAM RUBBER HARDNESS TESTER
JIS-K6382
Compress the specimen to 25％ of the original thickness for 20sec and divide the load by specimen's area to get its compression hardness.

Specimen:50X50X25㎜ （WXDXH）
Capactity:100Kg
Resolution:1/10000
Compressing distance:¯200，with hole (¯6, pitch 19㎜)

JIA-911Binformation
FOAM RUBBER HARDNESS TESTER
JIS-K6382
Compress the specimen to 25％ of the original thickness for 20sec and divide the load by specimen's area to get its compression hardness.

Specimen:50X50X25㎜ （WXDXH）
Capacity:30Kg
Compressing distance:0.01～20㎜or optional
Compressing distance:¯200，with hole (¯6, pitch 19㎜)

JIA-911Cinformation

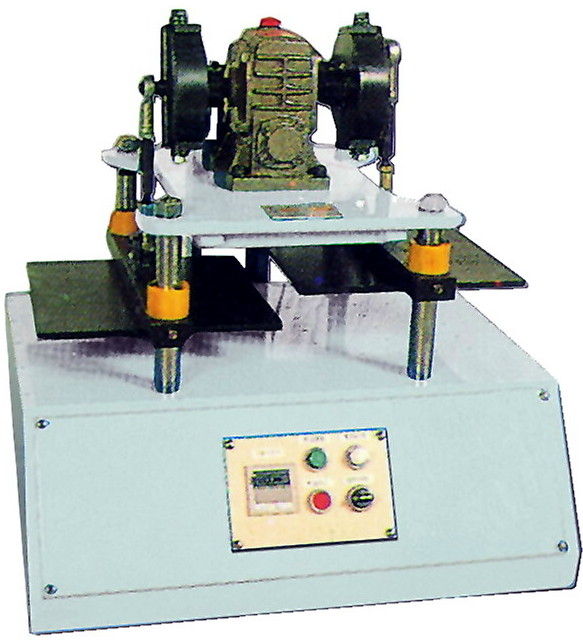

FOAM RUBBER RECIPROCATING COMPRESSION TESTER
Compress the specimen(foam material) to measure its permanent deformanent ratio.

Specimen:50X50X20㎜ （WXDXH）
Compressing speed:60cpm
Compressing distance:10～100㎜ ( adjustable )
Counter:6 figures LCD

JIA-912information    Animation

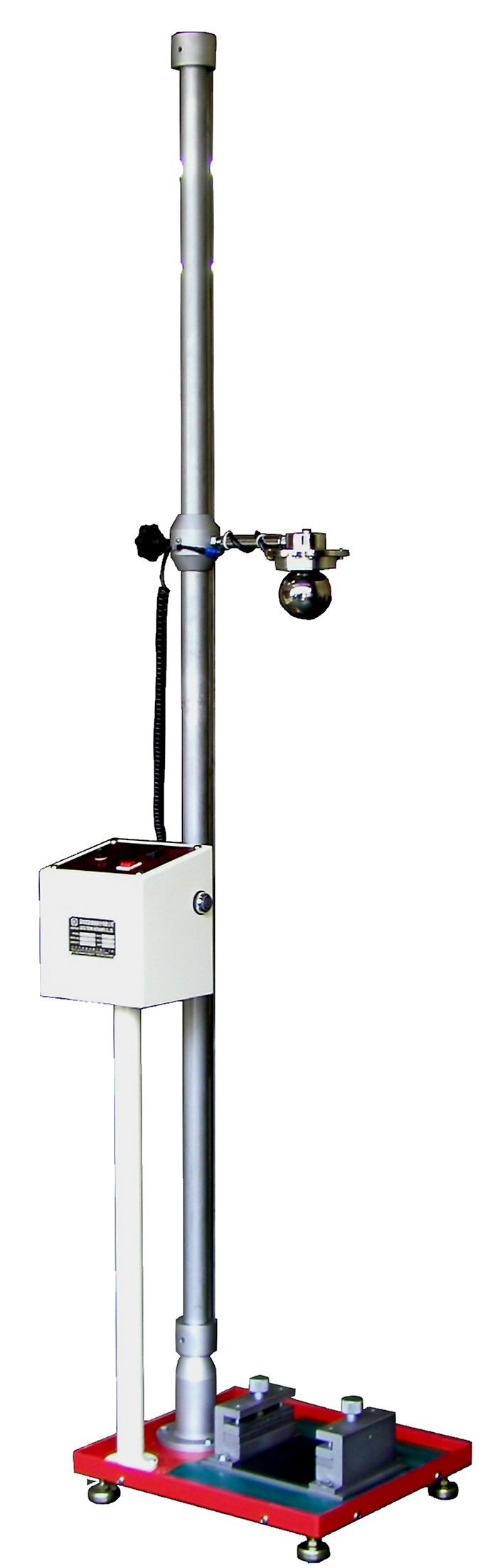

DROUP BALL IMPACT TESTER
JIS-K6745
The striker with a definite weight drop freely from specified height to strike specimen for judging its quality.

Drop height :2M or specified
Control method of drop ball:By soienoid (VDC)
Weight of steel ball:112,198,225,357　　　　533,1041,2280g (optional
